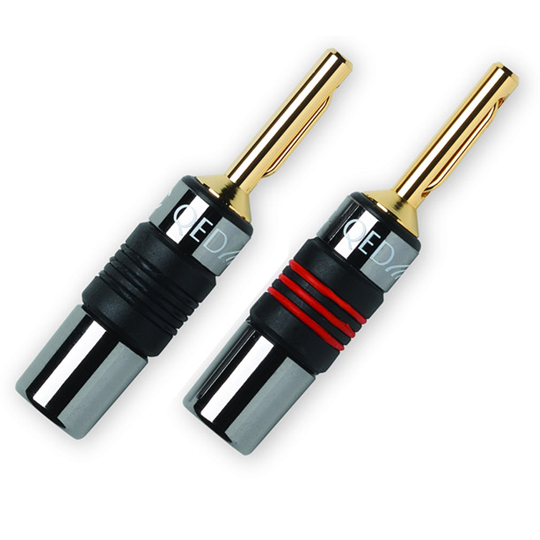

Airloc™ is aform of cold weld system that can be used to permanently attach QED Forté™ banana plugs or spade terminals toour entire range of speaker cables.

One of the mainreasons for choosing a QED speaker cable is the superior d.c. resistancecharacteristics offered by our exclusive use of 99.999% oxygen free copperconductors. It seems a shame then to ruin all this attention to detail byneglecting the most vulnerable area of the speaker cable chain - that of thephysical interface between cable and amplifier or speaker terminals.

Seen under a microscope the surface of a typical copper strand is very rough and so using normal screw type terminals - as found on binding posts or cheap banana plugs - electrical contact is only made in a relatively small number of places. Add to this a layer of oxidation - which is inevitable if copper is exposed to the air for even a short time - and the combined resistance of the cable and its termination can creep back up to levels present in a more inferior cable.

By using a cold weld crimp type termination Airloc™ plugs squash the conductors and plug together to improve contact area and reduce resistance.

As can be seen in the graph below, by the time the full pressure has been applied the resistance of the joint has reached a minimum value.

Now, because all the air has been removed from the joint there will be no oxidisation of the contact surfaces so the low resistance will remain for the lifetime of the cable. During the cold weld process the cable and plug become one solid piece of metal.
